메인 제품


Main Products

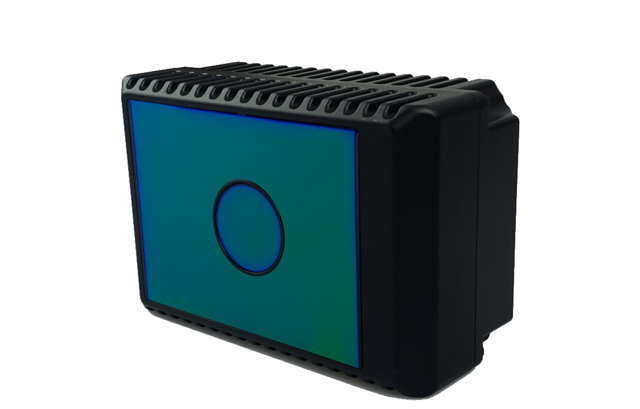

NSL-1110PD


Detection Range

- Outdoor: 10m


Field Of View

- 90°(H) x 65°(V)


Refresh Rate

- 160 x 120 voxel: 30fps

- 320 x 240 voxel: 20fps


Accuracy

- ±2%


Operating Voltage

- 9V ~ 30V (DC)


Dimension

- 116 x 76 x 57 mm


Usage

- lidar sensor for safety detection

- Sensor for detecting railroad safety doors

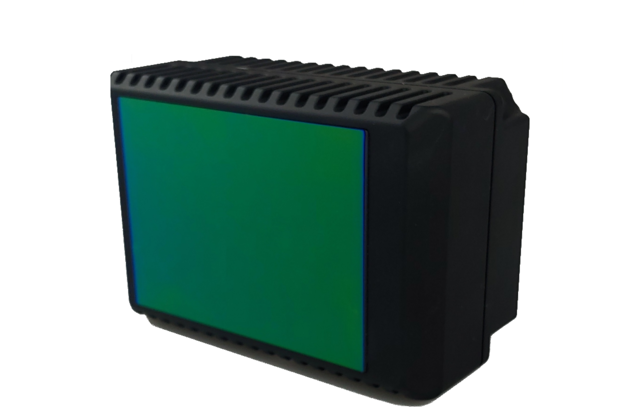

NSL-1110AV


Detection Range

- Outdoor: 15m


Field Of View

- 110°(H) x 78°(V)


Refresh Rate

- 160 x 120 voxel: 30fps

- 320 x 240 voxel: 20fps


Accuracy

- ±2%


Operating Voltage

- 9V ~ 30V (DC)


Dimension

- 116 x 76 x 54 mm


Usage

- Driving robot lidar

-  Logistics vehicle obstacle detection and avoidance

-  Robot target object detection

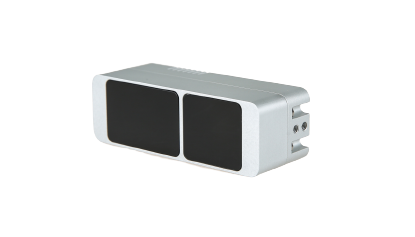

NSL-2206AA


Detection Range

- Outdoor : 7.5m


Field Of View

- 50°(H) x 19°(V)


Refresh Rate

- 160 x 60 voxel: 50fps



Accuracy

- ±2%


Operating Voltage

- 9V ~ 30V (DC)


Dimension

- 80 x 24 x 28 mm


Usage

- ADAS lidar for Automobiles

- Near field 3D lidar sensor

NSL-1140AV

(under development)


Detection Range

- Outdoor: 40m


Field Of View

- 25°(H) x 20°(V)


Refresh Rate

- 160 x 120 voxel: 40fps

- 320 x 240 voxel: 20fps


Accuracy

- ±2%


Operating Voltage

- 9V ~ 30V (DC)


Dimension

- 116 x 76 x 57 mm


Usage

- lidar sensor for safety detection

- Sensor for detecting railroad safety doors
