Main Products

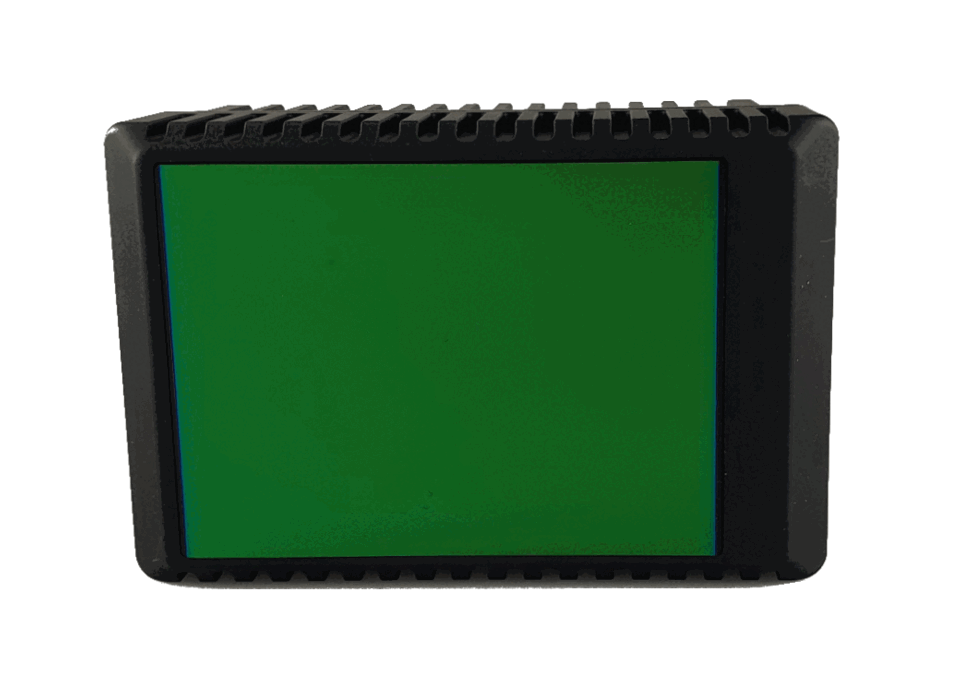

NSL-1110PD


Detection Range

- Indoor: 10m



Field Of View

- 90°(H) x 65°(V)





Refresh Rate

- 160 x 120 voxel: 10fps

- 320 x 240 voxel: 5fps


Accuracy

- ±2%


Operating Voltage

- 18V ~ 30V (DC)


Dimension

- 116 x 76 x 57 mm


Usage

- lidar sensor for safety detection

- Sensor for detecting railroad safety doors

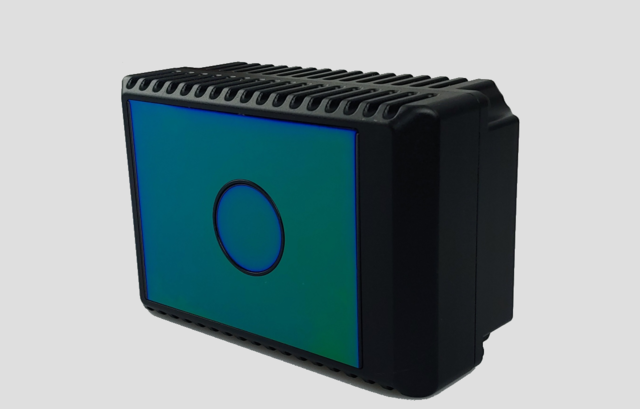

NSL-1110AV


Detection Range

- Indoor: 12m



Field Of View

- 110°(H) x 78°(V)





Refresh Rate

- 160 x 120 voxel: 10fps

- 320 x 240 voxel: 5fps


Accuracy

- ±2%


Operating Voltage

- 18V ~ 30V (DC)


Dimension

- 116 x 76 x 54 mm


Usage

- Driving robot lidar

-  Logistics vehicle obstacle detection and avoidance

-  Robot target object detection

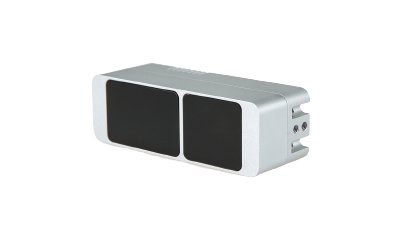

NSL-2206AA


Detection Range

- Indoor : 7.5m

- Outdoor : 6m


Field Of View

- 50°(H) x 19°(V)

; 6m(Outdoor)




Refresh Rate

- 160 x 60 voxel: 20fps



Accuracy

- ±2%


Operating Voltage

- 18V ~ 30V (DC)


Dimension

- 94.8 x 31.8 x 26.4 mm


Usage

- ADAS lidar for Automobiles

- Near field 3D lidar sensor

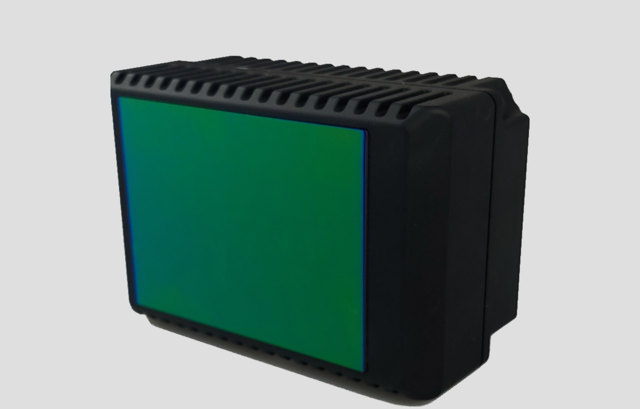

NSL-3130AA


Detection Range

- Indoor: 70 m

- Outdoor : 24m


Field Of View

- 49°(H) x 37°(V)

- 90° (H) x 66° (V)

- 110° (H) x 77° (V)

; 24m(Outdoor)


Refresh Rate

- 160 x 120 voxel: 20fps

- 320 x 240 voxel: 10fps


Accuracy

- ±2%


Operating Voltage

- 18V ~ 30V (DC)


Dimension

- 97 x 63 x 35 mm


Usage

-Mobility(Outdoor)



Applications

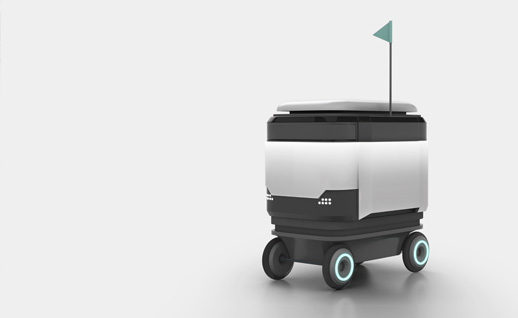

Robot Vision


It is used as a vision sensor for AGV, AMR, Bin-Picking robots and provides a universal vision control platform integrating them.

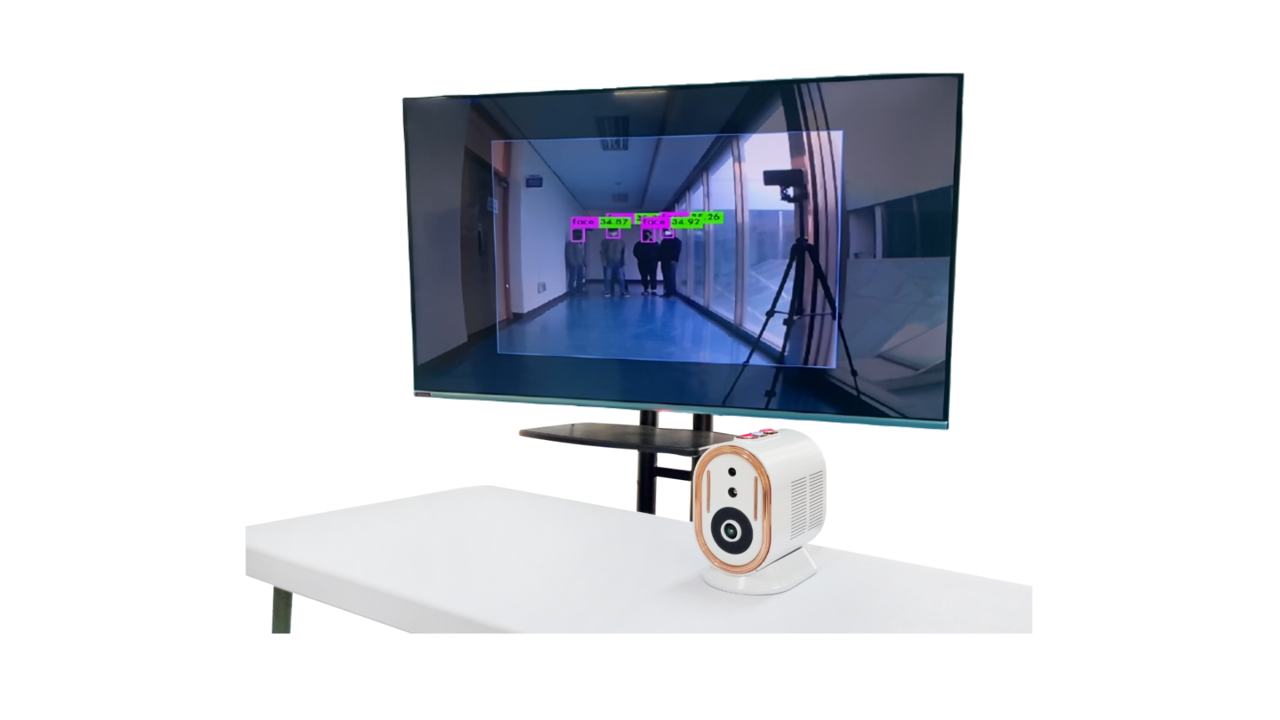

Roboscan AI


Measure the temperature precisely through the fusion of the camera and LiDAR.

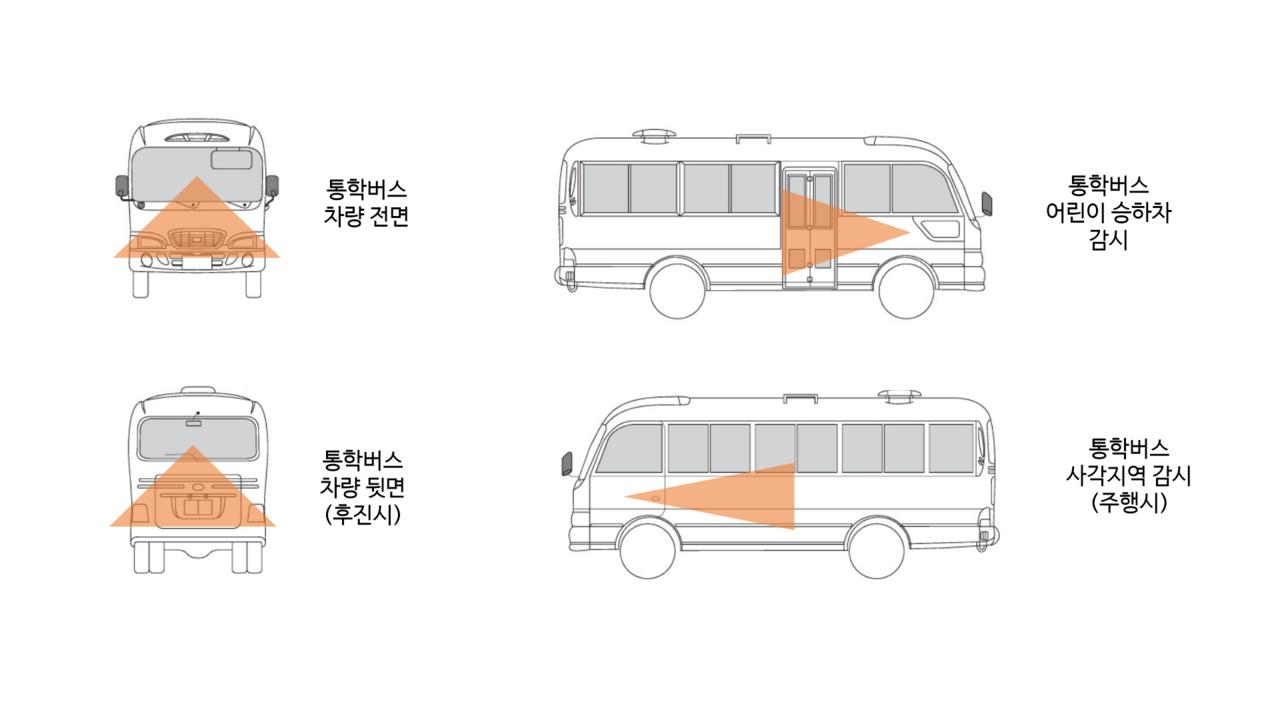

Vehicle ADAS


Prevent accidents by detecting blind spots in the vehicle.

Security


Through sophisticated 3D scanning technology, it provides a solution to the existing security technology by grasping the movement of objects in real time while preventing privacy invasion.
