3D LiDAR
3D LiDAR
Driving Robot LiDAR, ADAS LiDAR for Automobiles.
-

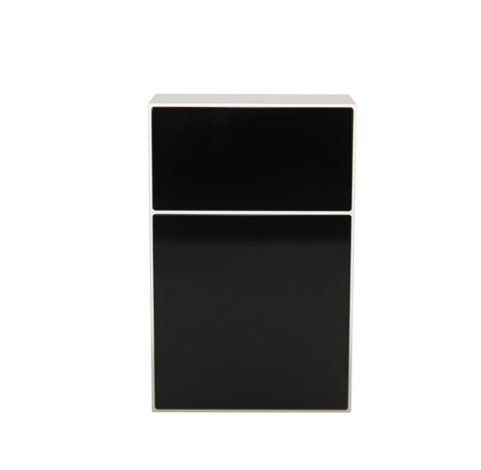

NSL-3140AADetection Range- Indoor : 30m
- Outdoor : 24m
Field Of View- 49°(H) x 37°(V)
- 90°(H) x 66°(V)
- 110°(H) x 77°(V)
: 24m(Outdoor)
Refresh Rate- 160 x 120 voxel : 40fps
- 320 x 240 voxel : 14fps
Accuracy- ±2%
Operating Voltage- 18V ~ 30V (DC)
Dimension- 97 x 63 x 35 mm
Usage- Mobillity(Outdoor)
-

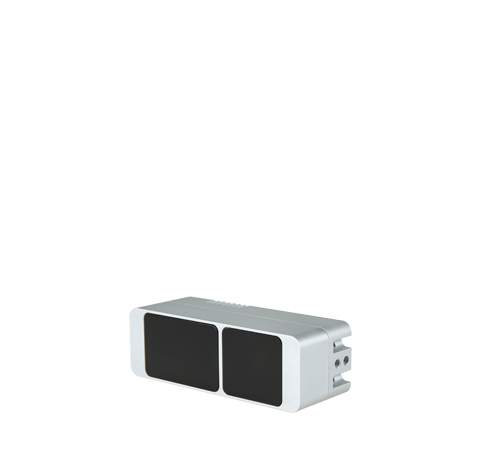

NSL-2206AA
Detection Range- Indoor : 7.5m
- Outdoor : 6m
Field Of View- 110°(H) x 39°(V)
Refresh Rate- 160 x 60 voxel : 20fps
Accuracy- ±2%
Operating Voltage- 18V ~ 30V (DC)
Dimension- 94.8 x 31.8 x 26.4 mm
Usage- ADAS lidar for Automobile
- Near field 3D lidar sensor
-

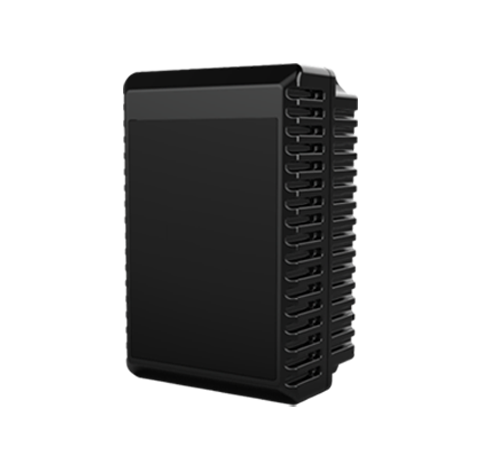

NSL-1110PD
Detection Range- Indoor : 10m
Field Of View- 90°(H) x 65°(V)
Refresh Rate- 160 x 120 voxel : 9fps
- 320 x 240 voxel : 5fps
Accuracy- ±2%
Operating Voltage- 18V ~ 30V (DC)
Dimension- 116 x 76 x 57 mm
Usage- lidar sensor for safety detection
- Sensor for detecting railroad safety doors -

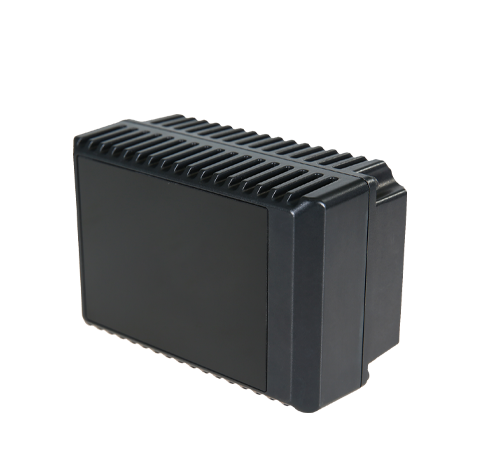

NSL-1110AV
Detection Range- Indoor : 12m
Field Of View- 110°(H) x 78°(V)
Refresh Rate- 160 x 120 voxel : 9fps
- 320 x 240 voxel : 5fps
Accuracy- ±2%
Operating Voltage- 18V ~ 30V (DC)
Dimension- 116 x 76 x 54 mm
Usage- Driving robot lidar
- Logistics vehicle obstacle detection and avoidance
- Robot target object detection
Features
Edge Computing
|
|
|---|---|
Long Distance Measurement
|
|
Dustproof / Waterproof
|
|
3D LiDAR SOLUTION
A flash type lidar is a lidar that works by shining a laser forward and
capturing the scattered light reflected from a receiver located close
to the laser to capture the entire scene as a single image.
ROBOSCAN VIEWER
MODE
